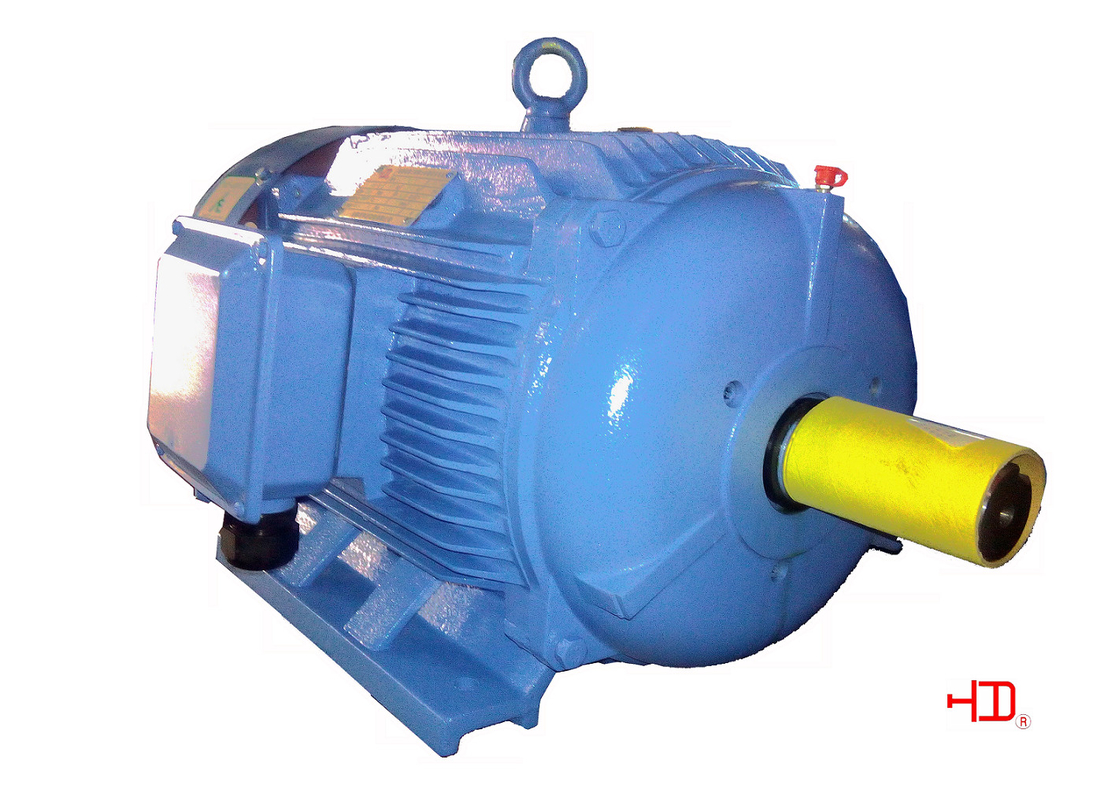

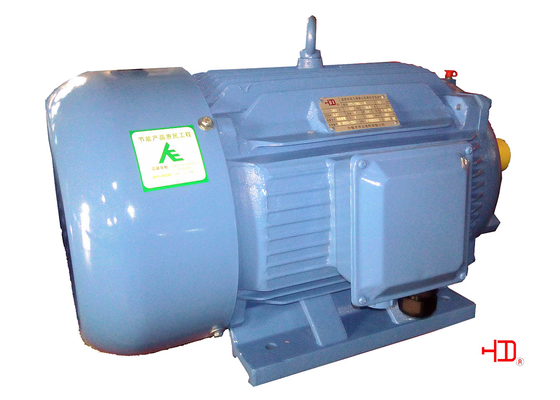

Water Cooling Permanent Magnet Frequency Variable Three Phase Synchronous Motor

Water Cooling Permanent Magnet Frequency Variable Three Phase Synchronous Motor

Description:

XYT H180-4F series motors are specially designed for cotton spinning factory and textile machinery manufacturers. Compared with traditional three-phase ac asynchronous motor , this series motors have the following advantages:
1, High Efficiency: The principle of motor design is to improve the motor efficiency through no rotor losses (no rotor aluminum loss and no rotor iron loss). Compared with asynchronous motors, this type motors have higher efficiency (more than 5%~8%). By efficiency test, we can find efficiency of XYT series can reach IE4 standard and GB18613-2012 level 1 standard.
2, High Power Factor: XYT series motors do not need reactive excitation current, so its power factor can be significantly enhanced to the limiting value1.0 in theory, 0.95 in nature. Its operation current is relatively small
3, Constant Synchronous torque: The speed of asynchronous motor will changed followed the load fluctuation which will effect the product quality in cotton spinning industry. But our XYT H180-4F series motors have constant speed which can ensure the output and quality in cotton spinning industry.



Technical Specification (4 pole/1500r/min  380V/50HZ)

Mounting and Overall Dimensions(mm)

The following as options or customer’s request:

Protection class IP56
  Space heater
  Heat protector
  Vibration detector
  Special mounting dimension and shaft dimension
  Low vibration and low noise
  Bearing thermometer PT100(frame size H180 and above)
  Winding thermometer PT100
  PTC/PTO
  Special painting
Special voltage and frequency
Aluminium frame
  Others


Applications:

They can be widely used for driving various common machines and equipments such as compressors,fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum,chemical,pharmaceutical and mining industries.


Competitive Advantage:

The design of XYT-180-4F series motors  combine water cooling unit of FSLP and electromagnetic design of XYT-180-4 series motors , ,which can achieve the maximum power saving effect.

       For example, changing 18.5KW inverter duty motor into 18.5KW water-cooling permanent magnet synchronous inverter duty three-phase motor,  it can save 22(PM)+20(water-cooling)=42 kilowatt – hour. If the motor can be used for 5 years and 300 working days per year , then during operation period it can save 42*300*5=63000 kilowatt – hour,  63000x0.50=31500 RMB , this money is enough to purchase more than 4 pcs new motors , and 5~6 months is enough to recover increased investment.
